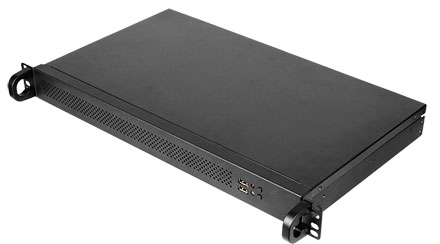

Jetway JBC150F594-Q170-B (Intel Q170 Express)

Jetway JBC150F594-Q170-B (Intel Q170 Express)

  • INTEL® LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
  • INTEL® Q170 Express Chipset
  • DDR4-2133MHz / SO-DIMM *2 / Max : 32GB
  • Giga LAN Port * 2 (INI219LM + i211AT)
  • Support DVI-I Port * 1, HDMI * 1, DP * 1
  • Support COM Port * 2 (1*RS232 ,1* RS232/422/485 )
  • Support USB 3.0 Port * 6
  • Applications：Industrial Control System, Networking Server System, Workstation


Share

669.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :
Product Dimension 430 (W) * 250 (D) * 44 (H) mm
Product Model JBC150F594-Q170-B
MB Model & Size NF594-Q170 (Mini-ITX)
CPU Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
Chipset Intel® Q170 Express Chipset
Memory DDR4-2133MHz / SO-DIMM *2 / Max : 32GB
Specs Devices 3.5” SATA Device * 1 or 2.5” SATA Device * 2
Colors Black
Front I/O Port Power SW * 1 Reset SW * 1 Power LED * 1 HDD R/W LED * 1 USB 2.0 * 2
Rear I/O Port Power SW * 1 , Reset SW * 1 Power LED * 1 , HDD R/W LED * 1 Intel Giga LAN Port * 2 (INI219LM + i211AT) DVI-I Port * 1, HDMI * 1, DP * 1 COM Port * 2 (1*RS232 ,1* RS232/422/485 ) USB 3.0 Port * 6 MIC * 1, Line in * 1, Line out * 1 AC Input * 1
PSU 1U-200W / Support PFC / 150 (L) *81.5 (W) *40.5 (H) mm (FLEX)
FAN 4020 FAN * 3 / 7000 rpm / DC-12V-0.1A / 8 CFM
Expansion PCI-E x 16 Solt * 1
Storage 3.5” HDD * 1 or 2.5” HDD * 2 (Support SATA 3 )
Accessory Power cord * 1 Quick Installation Guide * 1 User Manual * 1 CD * 1 Screw Package * 1
Packing Net Weight：3.5KG Gross Weight：4.5KG Color Box Dimension：530 (W) x 352 (D) x 142 (H) mm
Certification CE , FCC , RoHS , REACH
Applications Industrial Control System Networking Server System Workstation
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
